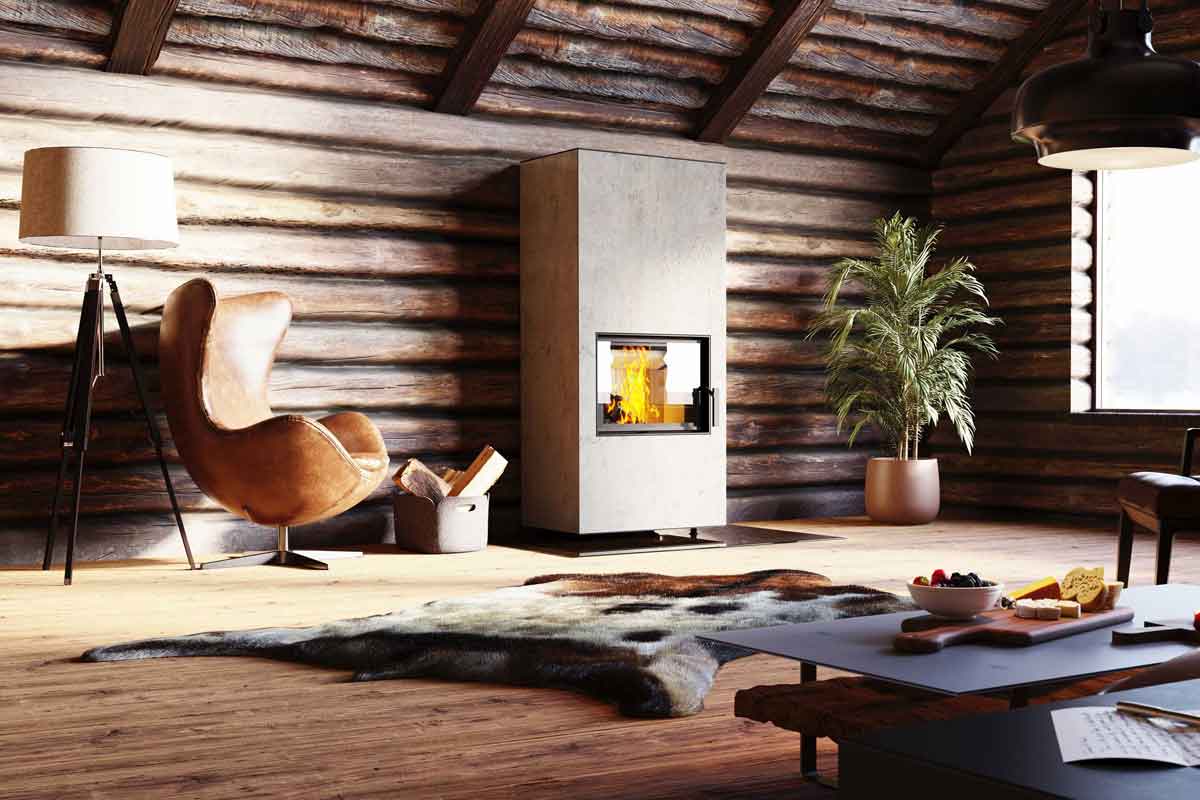

neocube Stove F10

neocube Stove F10

neocube - design, quality & efficiency in perfection

The seven neocube series offer a total of 34 different models that combine maximum individuality and quality. Each model is available in eight elegant sintered ceramic surfaces and sets stylish accents in any living space.

Thanks to the perfectly matched, high-quality components, all neocube models can be installed quickly and easily - in just a few hours, without any mess.

Technology meets design

• Excellent combustion technology for maximum efficiency
• Industrial quality for long-lasting perfection
• Simple installation thanks to clever design
• Excellent price-performance ratio

The neocube P, C and F models can be mounted directly on the wall, offering maximum flexibility in room design.

 + Impressive design - consisting of the most modern and highest quality materials.
 + Prefabricated to the highest industrial quality. Installed in a short time without creating dirt.
 + At a great all-inclusive price. This is neocube - modern style of fire.

NOTE: the ceramics can be composed of 2 different colours (top different from bottom); so it is impossible to show all possible combinations here. Please enquire, thank you.

Technical Data

• Manufacturer: cb-tec
• Energy efficiency class : A+
• Nominal heat output (closed) kW: 5.9
• Heat output min./max. kW: 2.4 - 7.0
• Efficiency % : >80
• Fuel: Logs
• Combustion system: Closed combustion, dependent on room air
• Combustion air requirement, m3/h: 17.7
• Glass version: Standard glass
• Door design: Sliding door
• Flue pipe connection diameter mm: 150
• Flue pipe connection: rear
• Supply air connection at the rear: 125 mm. From here, a connection pipe can be used to connect to the bottom or rear.
• Dimensions W/H/D mm: 774/1700/525 (575 with isoPRO)
• Weight kg: approx. 260
• Operation possible with type A1 : yes
• Operation possible with type A : --
• Tests: BImSchV. 1st + 2nd stage, DIN EN 13240 + 13229, Aachener/Münchener/Regensburger Verordnung, Art. 15 a B-VG (Austria), DIN+

Optional accessories:
Additional storage, approx. 100 kg
Plinth panel
Combustion air connection at the bottom
isoPRO*
Glass spark protection plates

The standard spark protection panel** t = 6 mm with bevelled edge or facet is available for every neocube model, as are the matching two-part glass spark protection and front panels made to measure as summer and winter panels/front panels. Other designs are available on request.

** Application: in front of straight and non-heat-insulated walls. Other applications possible on request.

*ISOPRO approval
In principle, all neocube P, C and F models can be mounted directly without spacing on walls to be protected that have a K value of ≥ 0.40 W/(m²-K).
In newly built houses, however, the walls are often highly thermally insulated. Highly thermally insulated walls are those with a K-value of ≤ 0.40 W/(m²-K). In this case, the neocube additional option isoPRO must be selected for direct rear wall installation. In the isoPRO version certified by the DBI Institute, the neocube has a 5 cm deeper construction in which an additional radiation reflector is installed. The isoPRO approval includes direct wall mounting up to a K-value of 0.10 W/(m²-K). As a rule, the responsible construction company or, if necessary, an energy consultant will provide information on the exact properties or K-value of the installation wall.
Due to its design, the basic version of the neocube P30 series already fulfils all the requirements for flush-mounted installation on highly thermally insulated walls.
Note: For all models with bench/sill, this is also designed 5 cm deeper.

Attention! The additional option isoPRO is only permitted for standard heights!

neocube - sintered ceramic | basic range (included in the standard price):

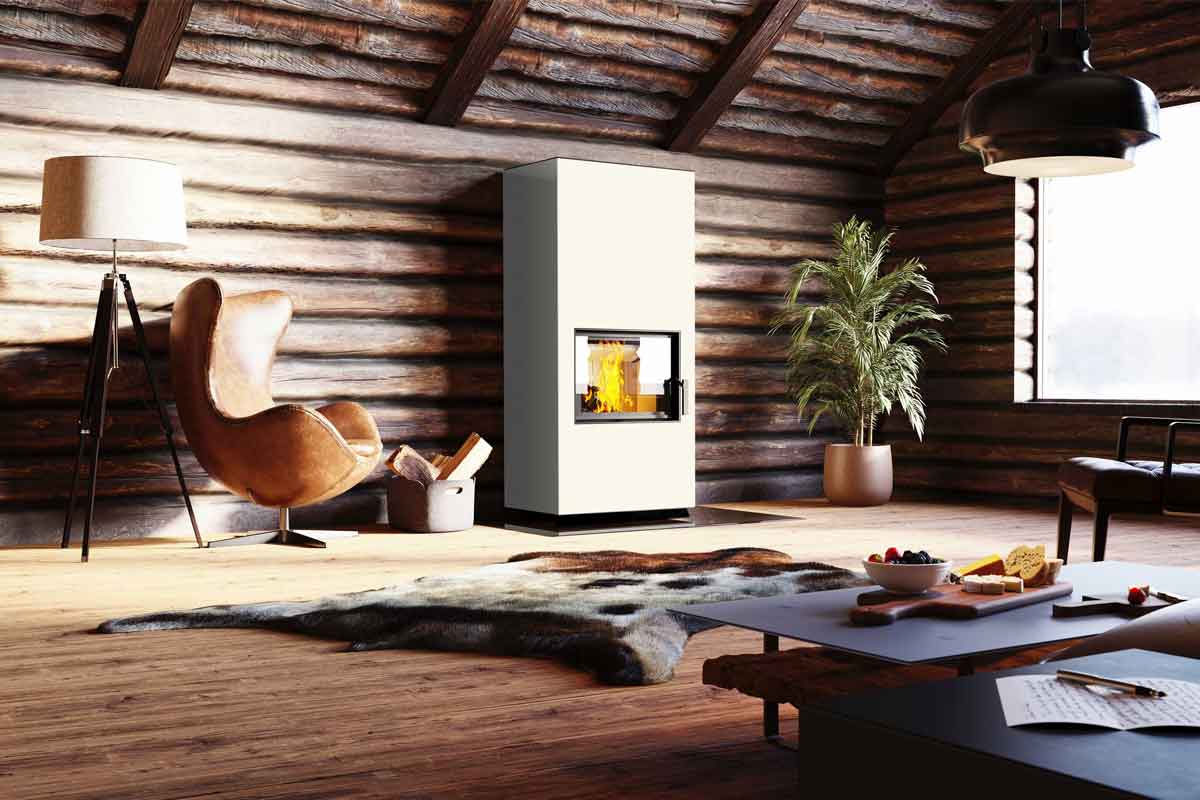

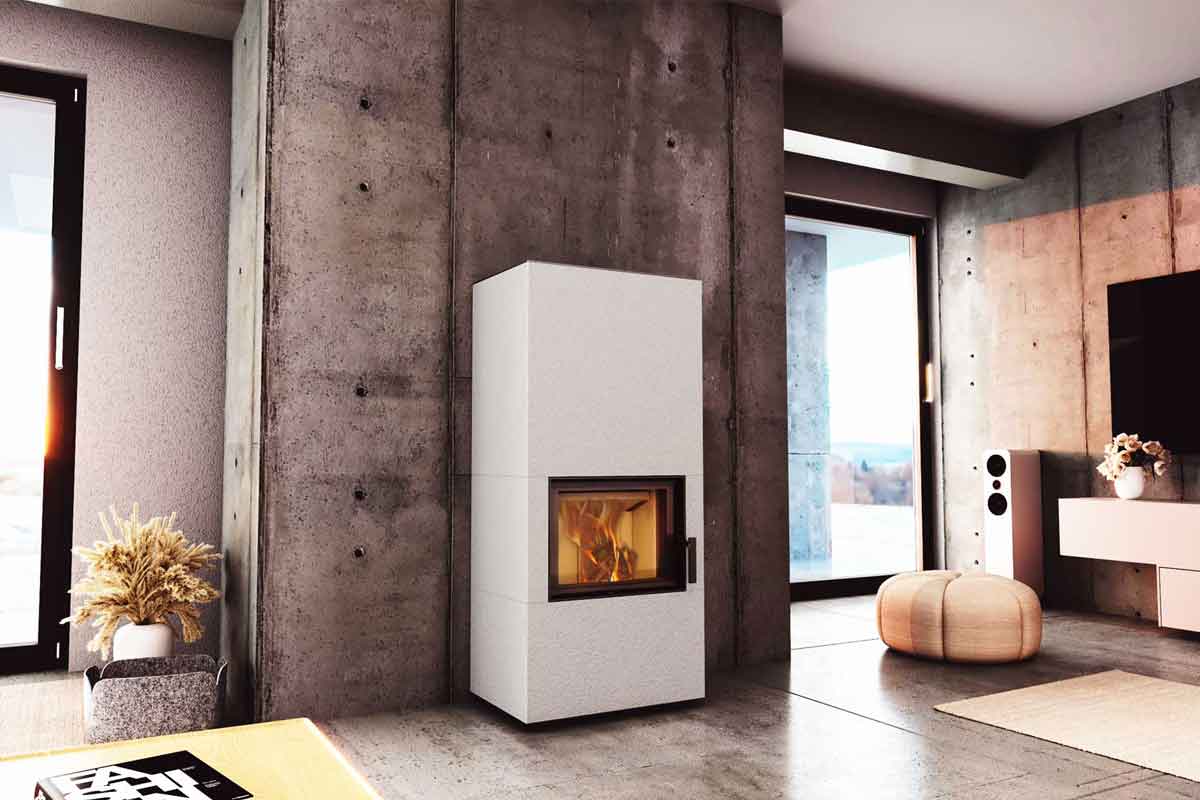

ARCTIC WHITE / JUST WHITE / PHEDRA / ROVERE BUCKSKIN / BARRO / IRON GREY / NERO ZIMBABWE

Further 24 colours & finishes available at an extra charge (see options + pictures)

Important note: Before purchasing, please speak to your local district chimney sweep and obtain authorisation from them to operate the desired fireplace.
