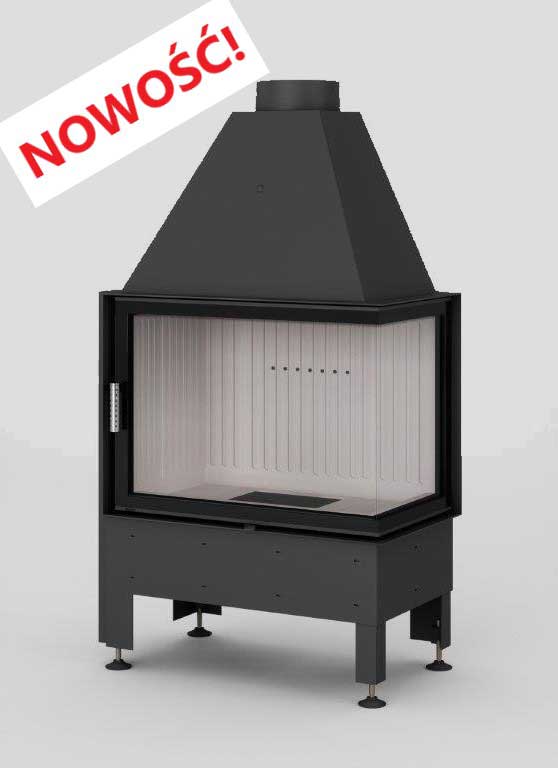

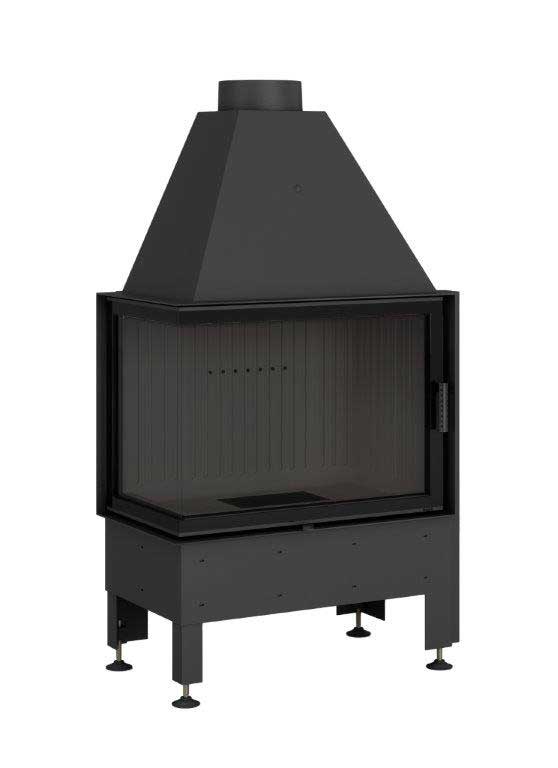

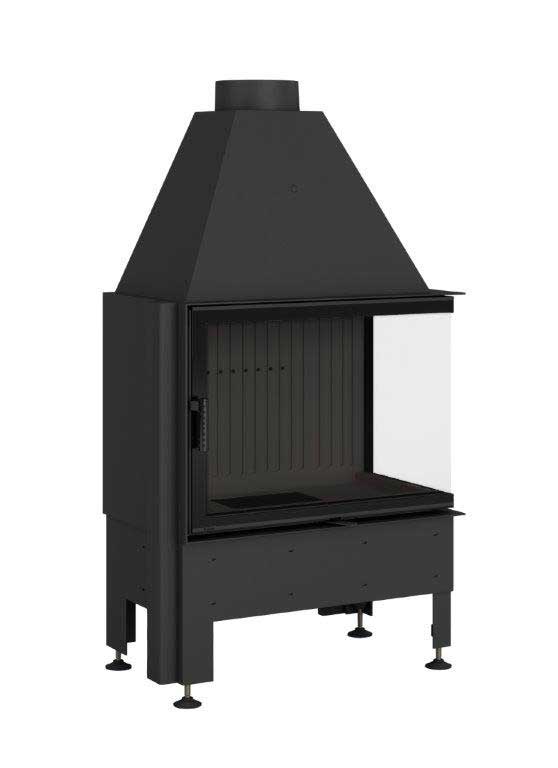

Hajduk Fireplace Volcano 2LT/2PT - S

Hajduk Volcano 2LT/2PT-S

Hajduk Fireplace Inserts – Quality & Technology at the Highest Level

Rely on uncompromising quality and state-of-the-art technology with Hajduk fireplace inserts – manufactured to European premium standards.

✅ Durable Steel and Fireclay Construction
Robust and reliable – for many years of safe operation.

✅ Perfect Welded Joints
Precise inert gas welding by robots guarantees maximum airtightness without screws or gaskets.

✅ High-Precision Manufacturing
State-of-the-art CNC and laser technology ensures the exact processing of every single component.

✅ Elegant Finishes
Innovative painting with sandblasting, robotic application, and drying – for maximum durability.

✅ Heat-Resistant Ceramic Glass
Temperature resistant up to 800 °C – available with double glazing or pyrolytic coating upon request.

✅ Efficient Jet Stream Superior air system
Individually adjustable primary and secondary air for perfect combustion and clean glass.

✅ Self-cleaning glass – Clear View
Always a clear view of the fire.

✅ Certified throughout Europe
Complies with EN 13229, BImSchV Stage 1+2 (Germany), 15a B-VG (Austria), LRV (Switzerland).

Hajduk – Technology you can rely on.

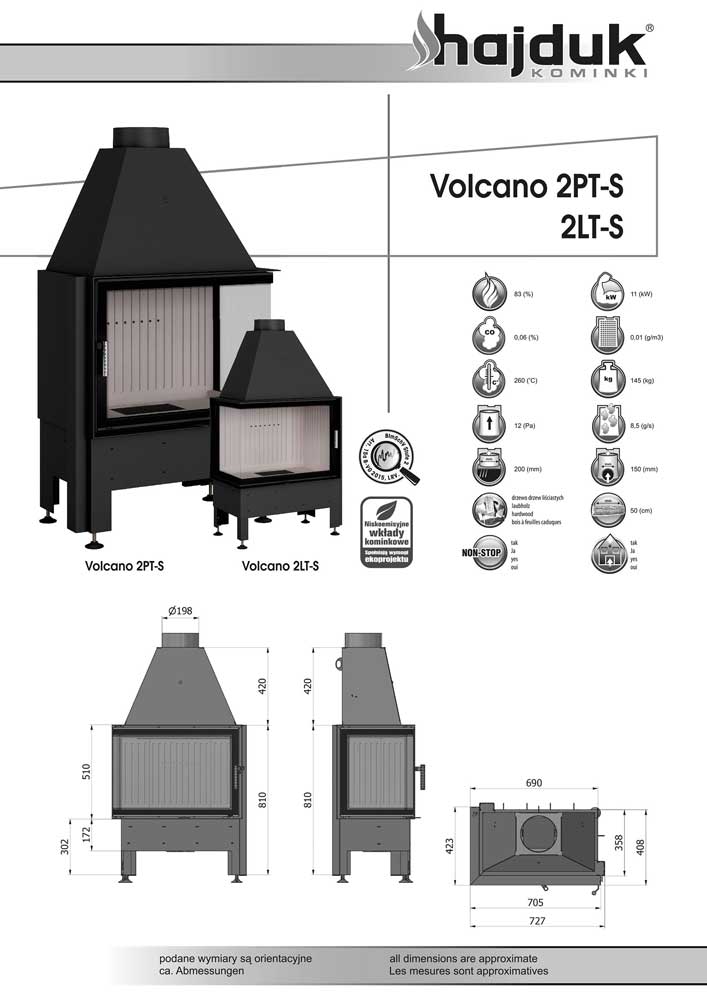

Specifications:

• with less depth
• Door size: w670/350xh510 mm
• frameless hinged door
• Nominal power: 11 kW
• Heating range: 4,5-14 kW
• Average efficency: 83 %
• CO emission: 0.6 g/m3
• Dust emission: 0.01 g/m3
• Flue gas temperature: 260 degree C
• Exhaust outlet: 200 mm
• Air inlet: 150 mm
• Fuel type: logs
• Length of logs: 50 cm
• Nominal capacity: 3,7 kg
• Fuel consumption: 3,7 kg/h
• Construction: steel
• Weight: 150 kg
• Certifications: Meets the requirements of ECODESIGN, standard EN 16510-1:2022, BImSchV level 2 for Germany, Art. 15.a for Austria, LRV for Switzerland.
• door hinged on short side!

Advantages of HAJDUK fireplace inserts

• Modern double-jacket steel-chamotte construction – tried and proven solution – fireplace that will last for decades
• Insert’s flue is fully and securely welded to the body without using any sealing materials or screws – welding robots are used and the welding process is carried out in an inert gas backing – high quality and tight joints – security in everyday use
• Construction elements are cut with 2D and 3D laser cutters and then processed on numerically operated bending machines, including bending process performed by a robot, while mechanical elements are created in an advanced CNC processing center – manufacturing precision of Hajduk, the Polish producer of the European Premium Class inserts
• Hajduk Fireplace Inserts are painted on a technological painting line: grinding, robot painting and drying are the most modern technologies for the materials of the best quality
• Heatproof ceramic glass that can withstand temperatures up to 800 °C, it is possible to use a double or pyrolytic glass, depending on the insert model
• Furnace pipe is led through a very high flue to increase the amount of the heat recovered from the fumes – extra heat recovery means extra money saving each day
• Exterior air supply and division system Jet Stream Superior with two burning speed controllers leads the primary air through the ashpan and the overfire air to the upper back part of the furnace. Primary air helps to ignite the first and next portions of wood while overfire air allows for economic and ecological combustion – it ensures a precise control over the combustion process
• Glass auto-cleaning Clear View system – it helps to keep the glass clean
