DRU Cosmo Tunnel RCH

DRU - Cosmo Tunnel Eco Wave

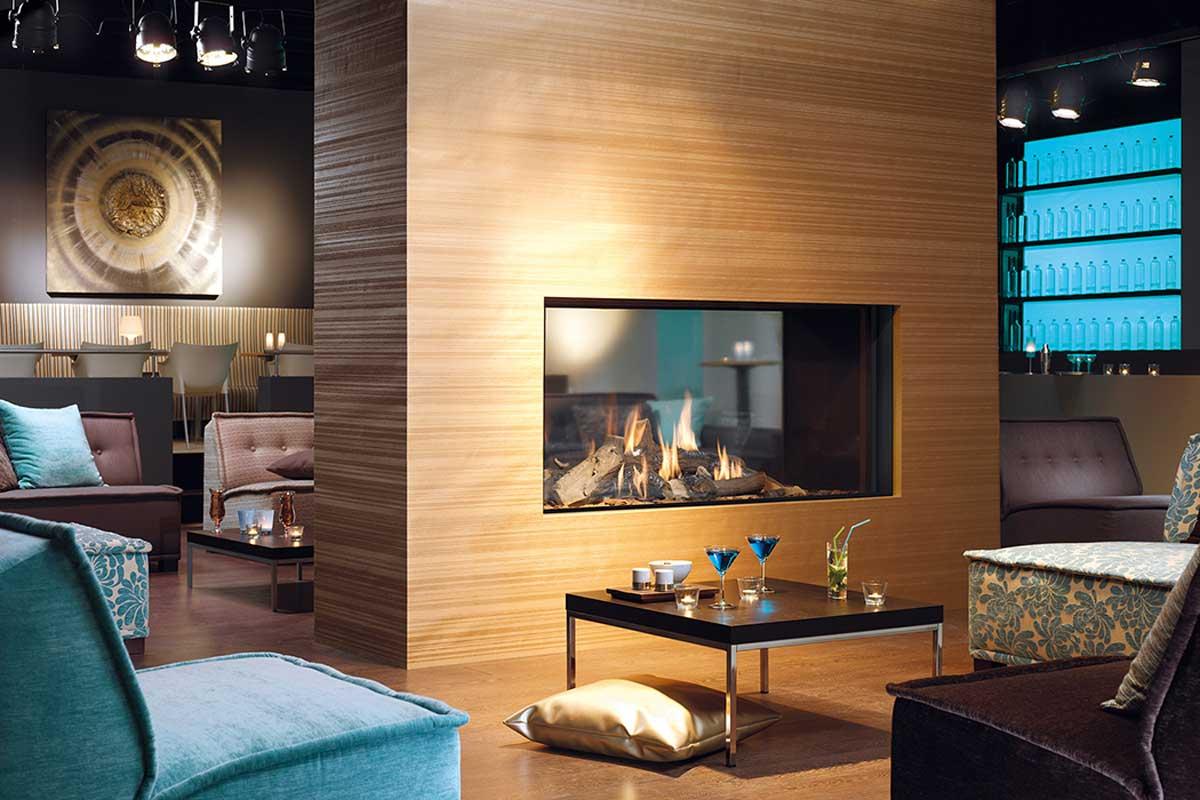

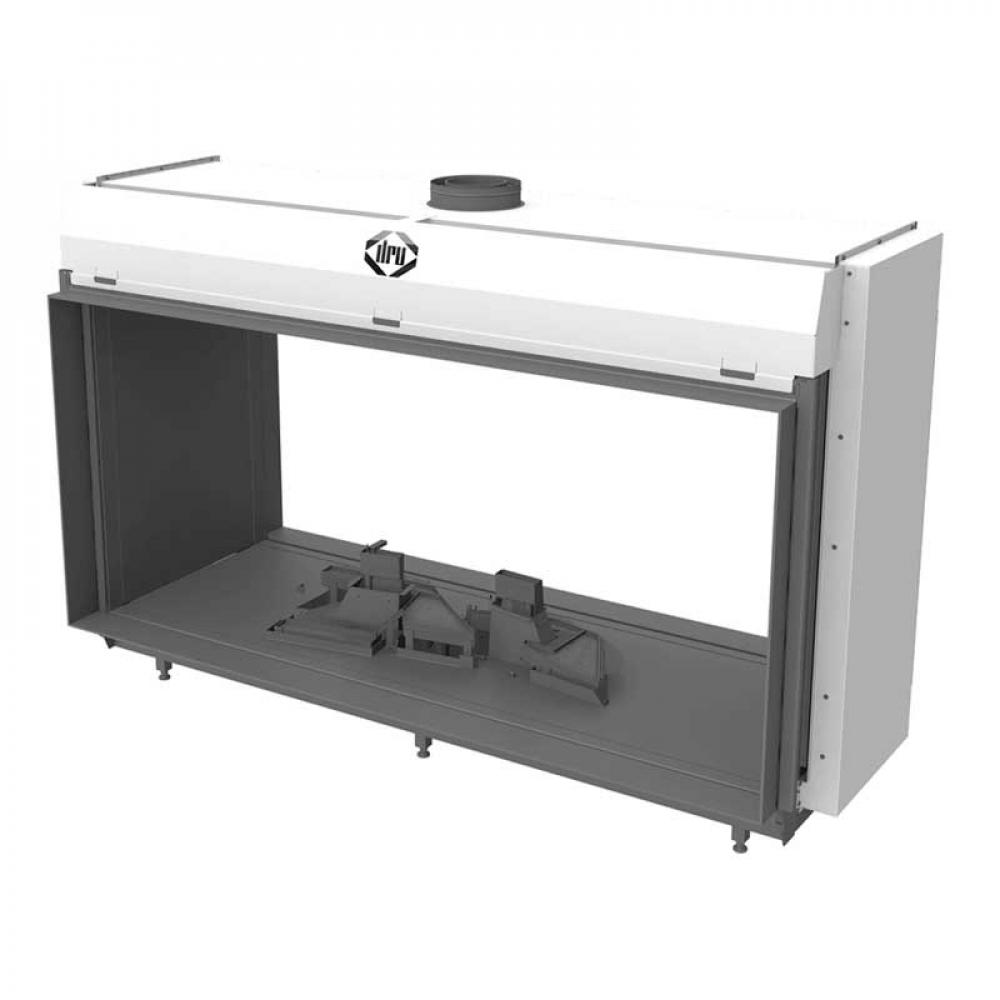

Cosmo Tunnel Eco Wave is an expansive, contemporary wood-burning fireplace that can be viewed from two rooms at once or integrated into a room divider to create a spectacular heat source. It is a 1.8 metre wide, room-sealed fireplace with a massive 15.7 kW heat output and a wood fire display.

Eco Wave technology: This technology allows the flame intensity to be controlled via an app, which not only optimises fuel consumption but also allows the atmosphere to be precisely adjusted.

With these features, the DRU Cosmo Eco Wave is a modern solution for those who want to enjoy an atmospheric fire without having to sacrifice flexibility and environmental friendliness.

Specifications

• Brand: DRU
• Energy efficiency class:
• Outout net G20 (G25) min. kW: 6.0 (4.9)
• Output net G20 (G25) max. kW: 16.3 (15.7)
• Model: Built in
• Fire view: 2-sided tunnel
• Fuel: Natural gas
• Combustion system: Combustion air from outside
• Glass window: Standard glass, optional Clear View Glass***
• Door type: Fixed door
• Control: Remote control RCH DRU, Smartphone/tablet
• Control hatch: included
• Burner: Vario Burner*
• Eco Wave: yes
• Eco Glow: no
• Thermostat: yes
• Colours: Black
• Material: Steel
• Interior: Black smooth
• Fire bed: optional Brown logs
• Efficiency (%): 89.3
• Built-in depth (mm): 706
• Fire view width (mm): 1774
• Fire view height (mm): 792
• Weight (kg): 327
• Flue Ø (mm): 200/130
• PowerVent possible : yes

Included in the scope of delivery::

Shielding box no. 1076621 electrical protective housing for floating installation on a plateau
Gas fitting and receiver for remote control integrated in the appliance
RCH remote control The DRU Lugo 80/3 Eco Wave is therefore not only a visual highlight, but also an efficient and environmentally friendly heating solution for modern living spaces
The installation and operating instructions

Optional accessories:
- log set brown
- central log
- communication module for WiFi ¹
- Window cleaner for CV glass
- Gas hose for gas socket - pre-assembled

Important information
230 V electrical connection required!
Please note additional components for orders with PowerVent! (on request)
Installation panel - can be ordered as an option - standard panel included in the scope of delivery
The cover is an optical design element and is not a supporting frame!

The technical details of DRU gas fire inserts cover a wide range of aspects that are relevant for both semi-automatic and fully automatic operation. Here is a summary of the technical description:

HONEYWELL CONTROL (RCH)
- Fully automatic operation: Requires a 230 V power connection.
- WiFi module: A communication module for control via mobile device (Android/iOS) via WLAN can be integrated as an option.

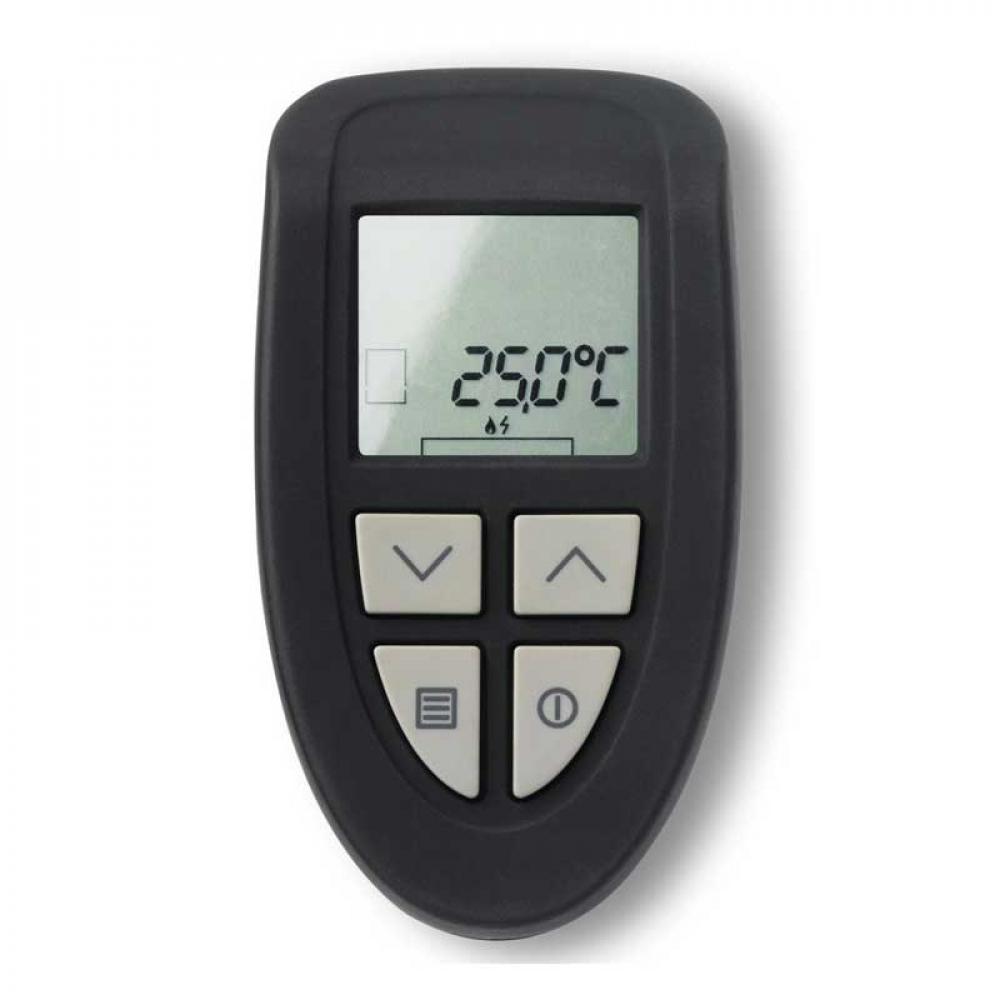

- Radio remote control: Includes the following functions:
- Ignition
- 15-stage flame adjustment (up to 30-stage for double burners)
- On/off (no pilot light required, saves gas)
- Daily and weekly programme via timer
- Programmable thermostat presets
- EcoWave activation.

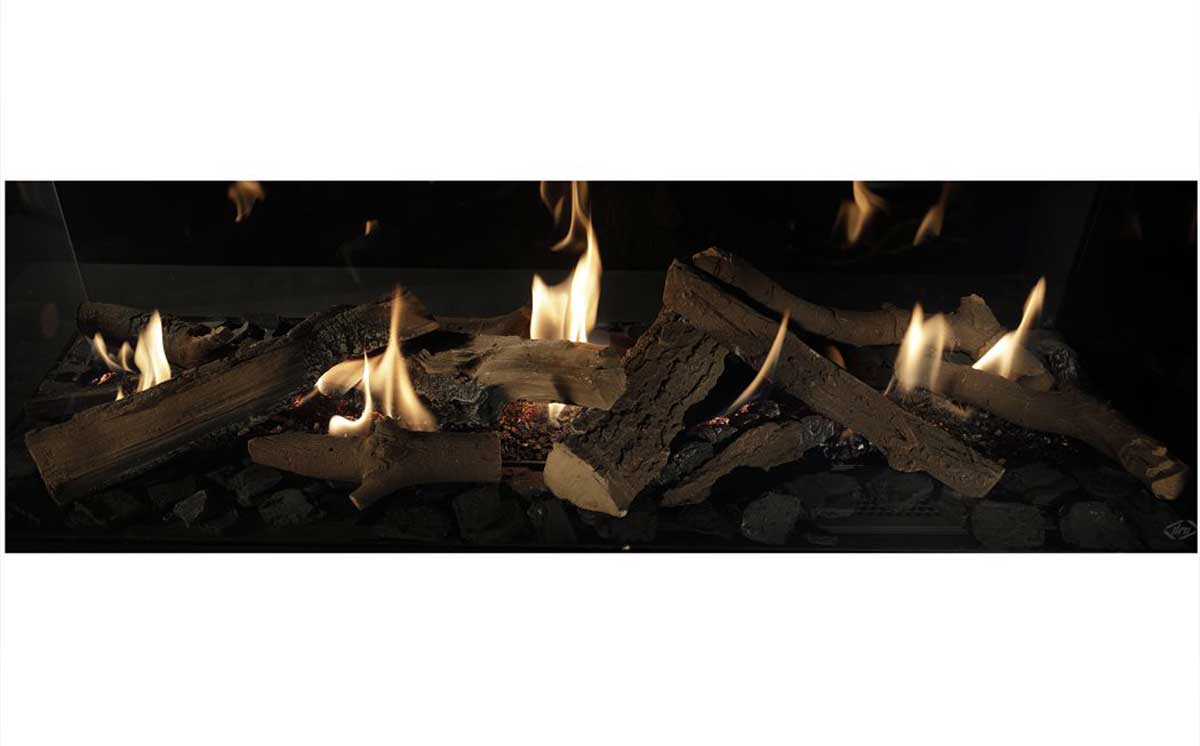

*VARIO BURNER
- A rich flame pattern with plenty of perspective
- The adaptation of the wood fire: wide and high flames
- Multiple dimensions due to the unique zigzag shape

***CLEAR VIEW GLASS
A good view of the flames means even more enjoyment from your burning gas fire. That's why DRU offers you Clear View glass: Anti-reflective glass that gives you an optimum view of the fire. This glass is extremely suitable for rooms with little direct sunlight or a dark interior.

Technical equipment
- Adjustable feet: The factory-installed feet can be adjusted by 50 mm. Optional adjustable feet are available with a height of up to 490 mm.
- Front design: Frameless glass ceramic panel, the gas fire insert may only be operated when closed.
- Burner granulate: Vermiculite is used as burner granulate.
- Imitation wood: Fire-resistant imitation wood made of ceramic fibre. Some models are also available with Carrara or Greystone stones.
- LAS system: Every gas fire insert must be connected to a DRU LAS system.

Control and regulation unit
- Supplied pre-assembled in a control box that can be positioned individually in the base area of the system.
- Connection lines for ignition, flame detector and gas line are usually located in the centre, on some models also on the left.

All in all, DRU gas fire inserts offer a high degree of flexibility in control and installation, precise flame control and modern additional functions for convenience and energy efficiency.

Important note: The connection of a gas fire must ONLY be carried out by a specialist company!
DRU gas fires may ONLY be installed with the DRU LAS flue gas system; otherwise they are not certified and will not be approved.
